Products
- Antenna
(LTCC / Slot array)
LTCC Antenna(1 port)
| CHARACTERISTICS | VALUES |
|---|---|
| Frequency (GHz) | 28.1~28.9 |
| No. of elements | 64 (8x8) |
| Antenna type | Patch (aperture-coupled) |
| S11 Bandwidth(GHz) | 1.8 |
| Peak gain (dBi) | 20.6 |
| CHARACTERISTICS | VALUES |
|---|---|
| Polarization | Linear |
| Feeding | 1 port (8x8 divider included) |
| LTCC layer/dielectric con. | 4층 / 6.2 |
| Dimensions (mm3) | 60 x 60 x 2.5 |
LTCC Antenna(8x8 ports)
| CHARACTERISTICS | VALUES |
|---|---|
| Frequency (GHz) | 28.1~28.9 |
| No. of elements | 64 (8x8) |
| Antenna type | Patch (aperture-coupled) |
| S11 Bandwidth(GHz) | 2.2 |
| Peak gain (dBi) | 23.8 |
| CHARACTERISTICS | VALUES |
|---|---|
| Polarization | Linear |
| Feeding | 8x8 ports (feeding divider not included) |
| LTCC layer/dielectric con. | 2층 / 6.2 |
| Dimensions (mm3) | 60 x 60 x 1.25 |

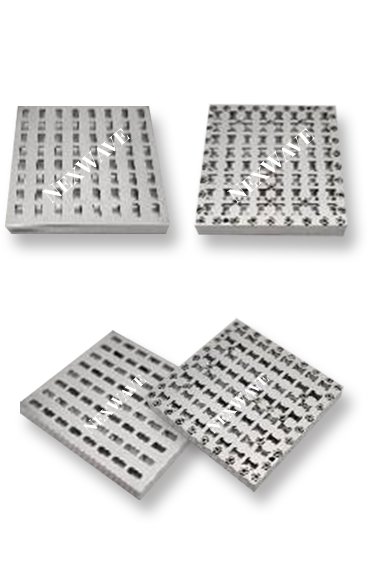

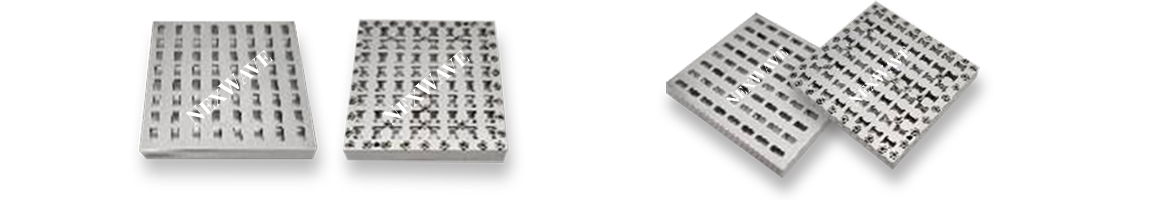

Waveguide Slot Array Antenna
| CHARACTERISTICS | VALUES |
|---|---|
| Frequency (GHz) | 26.5~27.3 / 28.1~28.9 / 26.5~29.5 |
| No. of elements | 64 (8x8) |
| Antenna type | waveguide slot array |
| CHARACTERISTICS | VALUES |
|---|---|
| Peak gain (dBi) | > 24 |
| Feeding | WR28 |
| ETC | low loss & low sideband level ridged waveguide feeding applicable for wide BW & compact size |
